Delta Fender

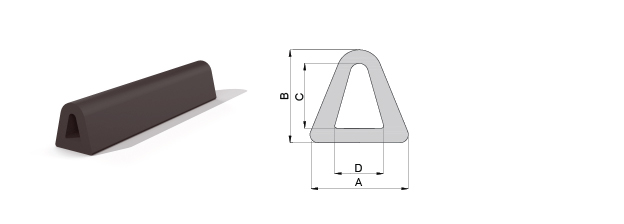

Standardgrößen Delta Fender
A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg/m) |
|---|---|---|---|---|
| 60 | 50 | 40 | 30 | 2.2 |
| 80 | 75 | 45 | 40 | 3.1 |
| 110 | 100 | 65 | 68 | 7.4 |
| 150 | 130 | 80 | 75 | 13.5 |
Nicht-Standard-Größen und kundenspezifische Ausführungen sind auf Anfrage erhältlich.

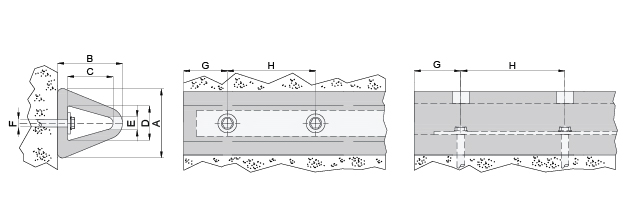

Mounting method and dimensions Delta fender
A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G | H | Flat bar | Bolt size |
|---|---|---|---|---|---|---|---|---|---|
| 60 | 50 | 40 | 30 | 20 | 10 | 70-110 | 150-250 | 15 x 3 | M8 |
| 80 | 75 | 45 | 40 | 30 | 15 | 90-130 | 200-300 | 35 x 5 | M12 |
| 110 | 100 | 65 | 68 | 30 | 15 | 90-130 | 200-300 | 40 x 5 | M12 |
| 150 | 130 | 80 | 75 | 40 | 20 | 110-150 | 250-300 | 60 x 8 | M16 |
General guidelines for mounting. For reference purposes only.
